Driving Together with the Vehicle – Conduct-by-Wire 2

Below you will find a short summary of the project. For further information please contact the project managers via the contact button on the right side.

Background

In the first DFG research project “Conduct-by-Wire – A New Paradigm of Vehicle Guidance”, it was already examined to which extent the integration of all driver assistance systems in a comprehensive system, supports the driver in fulfilling the driving task. In Conduct-by-Wire, the driver now hands over manoeuvre commands to the vehicle (for example lane change to the left), which the vehicle then carries out automatically. During the first project period (April 2008 to April 2010), the focus was on examining the feasibility of such a concept in motorway scenarios. After several studies have shown that it is possible for the driver to control a vehicle by means of manoeuvres, the DFG follow-up project “From Conduct-by-Wire to a Cooperative Vehicle Guidance” dealt with the further development of the system. Together with the Department of Automotive Engineering of the TU Darmstadt, an attempt was made to develop this concept further in the direction of joint fulfilment of the driving task and to open up new traffic areas (rural roads and urban scenarios). The main task of the Institute of Ergonomics & Human Factors was the development of driver-friendly user interfaces and the review of the acceptance of the vehicle guidance concept.

Picture: IAD

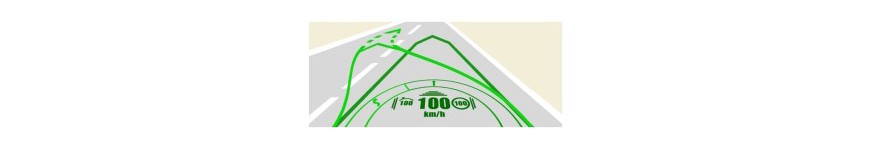

Concept sketch of the contact-analogue head-up display in the IAD driving simulator

Aims

The following questions were dealt with in the context of this research project:

  • How must an operator interface be designed to ensure the transfer of manoeuvres and parameters to the vehicle, adapted to the situation?
  • How must an operator interface be designed to ensure that the driver is able to anticipate the future actions of the vehicle at all times?
  • How must an operator interface be designed to give the driver the feeling of working together with the vehicle?
  • Is a manoeuvre-based vehicle guidance concept accepted by drivers?
  • How should such a system be designed, to be accepted by the driver?
  • What effect does the change of the vehicle guidance have on the driver behaviour / understanding of the role of the driver?

Methods

The development process of the user interfaces was a user-centred process, which means that users have repeatedly given feedback throughout the development process. For this purpose, several driving simulation studies were conducted, in which the users could actively experience the interaction. In a comparative study, an operator interface (for an example, see Video 1) was then selected based on subjective ratings (e.g., simplicity, stress) and objective criteria (e.g., gaze behaviour, interaction behaviours, accidents). This interface was used in a driving simulation study over a longer period of time by the subjects in order to obtain better conclusions about the acceptance of the users and the influence on the driver behaviour. Additional interview studies and online surveys on the acceptance of the conduct-by-wire system were conducted simultaneously.

Results

As a result of the project, the concept pieDrive was developed for the driver-vehicle interaction. It allows a distraction-free commissioning of manoeuvres through an intuitive design. All relevant information for the driver is displayed via a contact-analogous head-up display in the driver's field of vision. The driver enters information via a touchpad conveniently located in the area of the centre console.

Picture: IAD
